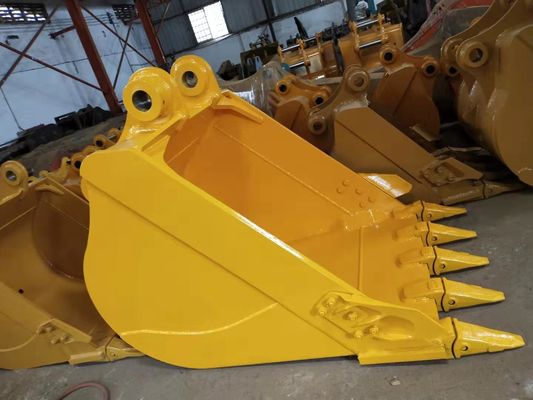

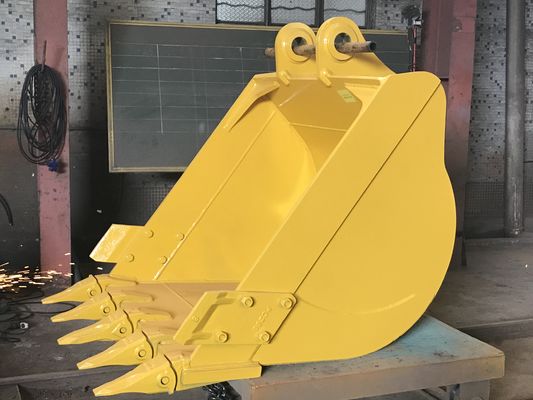

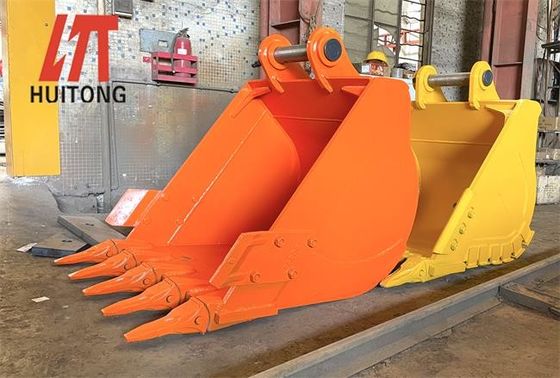

Name: Excavator bucket 20 tons excavator 0.8m³ excavator standard bucket excavator GP bucket high quality factory direct sales
Brand: Guangzhou Huitong Machinery Co., Ltd.
SKU: Las demás:
Price: 855.96 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Material: Q355B

Color: Requerido

Moq: 1 set

Calidad: Alta calidad

OEM: Servicios OEM prestados

El tiempo de entrega: 10-50 días

Información básica

Lugar de origen: Guangzhou, China

Nombre de la marca: HUITONG

Certificación: ISO9001 CE

Número de modelo: Las demás:

Pago y Envío Términos

Detalles de empaquetado: embalaje estándar

Tiempo de entrega: 10-50 días

Condiciones de pago: T/T

Capacidad de la fuente: 200 set por mes

Galería

Excavator bucket 20 tons excavator 0.8m³ excavator standard bucket excavator GP bucket high quality factory direct sales

Descripción de producto

Production Description

The Excavator General Purpose bucket is made of standard plate thickness, same as the original factory. Chinese Q355b steel has been used for the whole body of the excavator scoop, instead of just the wearable parts. The GP bucket is available for machine weights from 3T to 80T. It's tough and light.

Advantages

Superior Performance

1. Optimized profile for better filling & dumping.

2. Could be designed to fit your unique working purpose specifically.

3. Tech-team keep the GP bucket design upgrading routinely

Great Durability

1. The whole body is made of Q355b alloy steel (16Mn) instead of A3 steel which is been used widely on the market;

2. All steel are imported with quality inspection report from CSG, top level steel maker in China;

3. Qualified welders with ABS CSC certifiPCion;

4. Restrict QC system done by experienced QC team of 3 people

Superior Lead Time

1. Most size available in 5-7 days;

2. A team of 5 people were formed and mainly dealing with rush orders.

Reasonable Price

1. We only take a small piece of "cake" , in order to help our customers stay strong on the market.

2. We always aim to build long-term relationships with our customers.

Difference among General Purpose Bucket, Heavy Duty Bucket and Severe Duty Bucket

HT Bucket Series SpecifiPCion
HT Bucket Series SpecifiPCion
Bucket Series	Description/AppliPCion	Features
General Purpose Bucket	HT GP Bucket are made light and aim for boosting your working efficiency. Recommended used for digging clay, loading sand and gravel, volume loading for packed ground, tough clay, loose dirt and some other light works	1. Light weight 2. Relative tough material (16MN/Q355) 3. Large capacity 4. Boosting working efficiency
Heavy Duty Bucket	HT HD Bucket are designed to survive in the harsh working conditions. Recommended appliPCions: abrasive soils, compact or dense clay, loose rock and gravel	1. Heavy duty with bottom wear plate 2. Vertical shrouds added 3. Thickening plate 4. Optional weld-on lip shrounds
Severe Duty Bucket (Rock Bucket)	HT SD Bucket (Rock Bucket) are the toughest series. Our SD Bucket are designed not only to survive but also to thrive the harsh working conditions that you faced. Recommended appliPCions: shot rocks, Stratified Materials, Quarry, dense clay, etc.	1. Using Q355 for the body + Hardox 400/500/NM360 for all the wearable plate 2. Vertical shrounds added 3. Thickening plate 4. Weld-on lip shrounds added 5. Corner heel shrounds 6. Bottom wear strips added

SpecifiPCion

SpecifiPCion For Bucket Size
GP/HD BUCKET
Capacity(m³)	0.8	1	1.2	1.5	1.8	2	2.5	3	4	5	7
Length(")	42.5	46.5	46.5	51.2	51.2	53.1	59.1	66	67.3	73.6	82.7
Width(")	39.4	45.3	49.2	51.9	59.8	59.8	61	62.2	66.9	70.9	89.4
High(")	27.6	29.9	31.5	33.9	35.8	38.6	40.9	44.5	53.1	57.9	57.9
Teeth(Optional)	PC200	PC200	PC200	PC300	PC400	PC400	PC400	PC650	PC650	PC650	PC1000
Lip(")	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6

Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Excavator General Purpose Bucket.

Excavator bucket 20 tons excavator 0.8m³ excavator standard bucket excavator GP bucket high quality factory direct sales 0

General Arrangement Drawing

Excavator bucket 20 tons excavator 0.8m³ excavator standard bucket excavator GP bucket high quality factory direct sales 1
